TECHNICAL SPECIFICATIONS
Made by LOOK
| Frame | Very High Modulus Carbon UD Glossy finish |
|---|---|
| Crankset | LOOK ZED Track (without plates) – Short version : 165 / 167.5 / 170 mm Medium version: 172.5 / 175 / 177.5 mm |
| Bottom bracket | BB 65 (LOOK Specific) |
| Seatpost | Air Seatpost |
| Stem | Air Stem – available in 65mm / 75mm / 85mm / 95mm / 105mm / 115mm |
| Handlebar | Not included – (LOOK P24 specific – complete with Look Air bar poursuite / Look Air bar madisson / Look Air bar Vitesse) |
Geometry

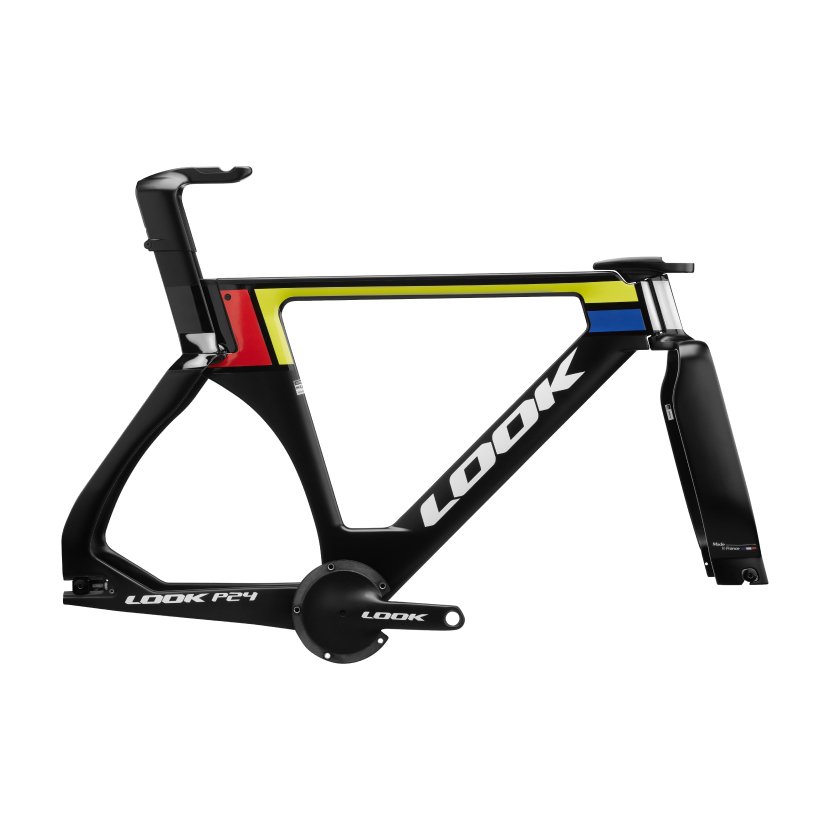

LOOK P24
| XS | S | M | L | |
|---|---|---|---|---|
| Stack | 466 | 483 | 500 | 517 |
| Reach | 412.6 | 438.6 | 464.6 | 490.6 |
| Reach center handlebar mount (65mm stem) | 469.6 | 495.6 | 521.6 | 547.6 |
| Min stack center handlebar mount | 74.7 | 74.7 | 74.7 | 74.7 |
| I – Head tube angle (°) | 74.7 | 74.7 | 74.7 | 74.7 |
| J – Seat tube angle (°) | 74.5 | 74.5 | 74.5 | 74.5 |
| A – Seat tube length | 483.3 | 501 | 518.7 | 536.4 |
| B – Top tube length | 541.9 | 572.6 | 603.3 | 634 |
| C – Front Center | 590.5 | 621 | 651.6 | |
| D – Trail | 61.4 | 61.4 | 61.4 | 61.4 |
| F – Fork offset | 30 | 30 | 30 | 30 |
| G – Chain stays length | 399 | 399 | 399 | 399 |
| K – Head tube length | 48.9 | 66.5 | 84.1 | 101.7 |
| L – Fork length | 390.6 | 390.6 | 390.6 | 390.6 |
| BB Drop | 50 | 50 | 50 | 50 |
| Standover | 482.5 | 499.5 | 516.5 | 533.5 |
