Brand: Dolan
Material: Carbon

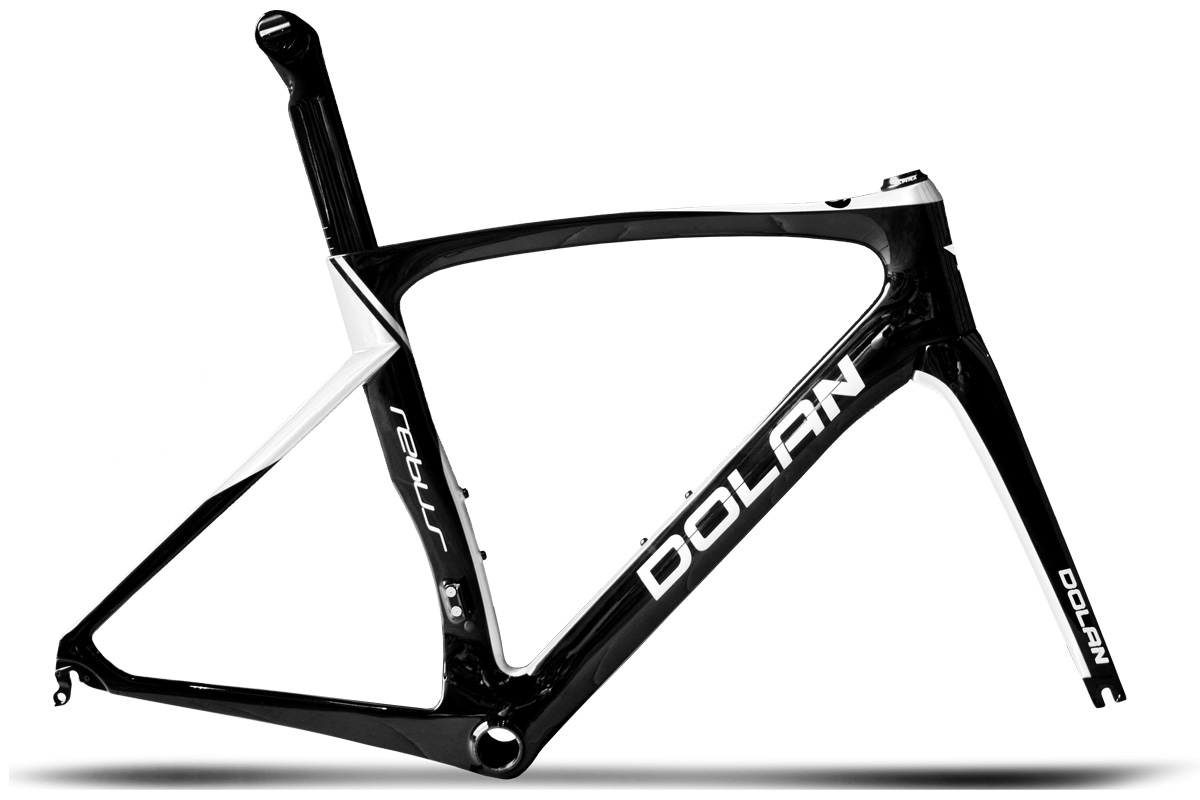

Bike Model: Rebus
AVAILABLE SIZE : 46ES/ 47ES/ 50M

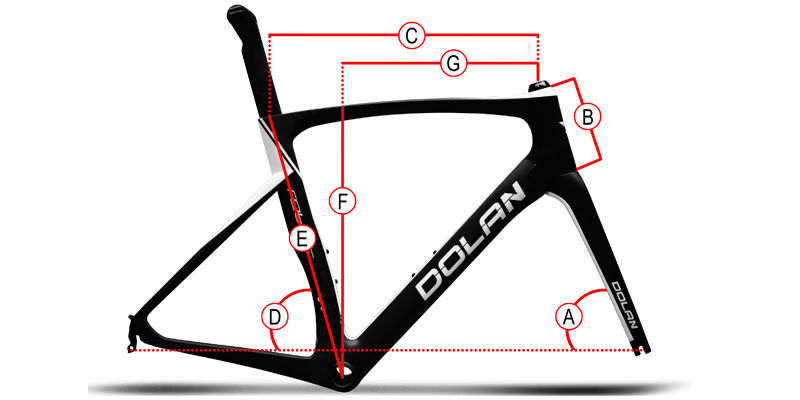

| SIZE | SMALL | MEDIUM | LARGE | X-LARGE | |
|---|---|---|---|---|---|
| A | Head Angle | 72.0 | 72.5 | 73.5 | 73.5 |
| B | Head Tube Length (mm) | 120 | 150 | 175 | 200 |
| C | Effective Top Tube Horizontal (mm) | 525 | 544.9 | 560 | 580.4 |
| D | Seat Angle | 74.0 | 73.5 | 73.5 | 73.5 |
| E | Seat Tube Length Center To Top (mm) | 450 | 499.7 | 540 | 569.6 |
| F | Stack (mm) | 521.1 | 551.5 | 578.7 | 602.7 |
| G | Reach (mm) | 375.6 | 381.5 | 388.6 | 401.5 |
