Specifications :

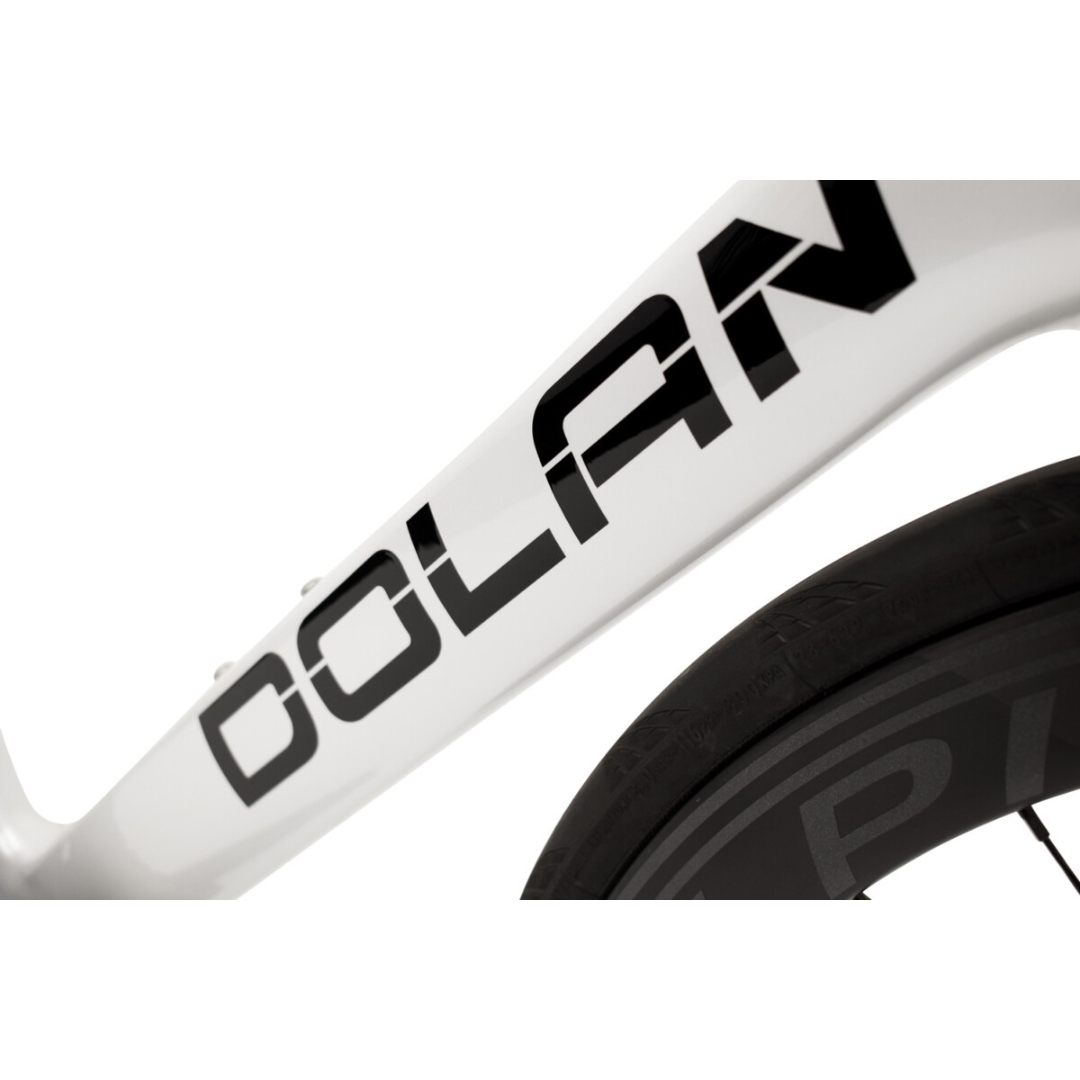

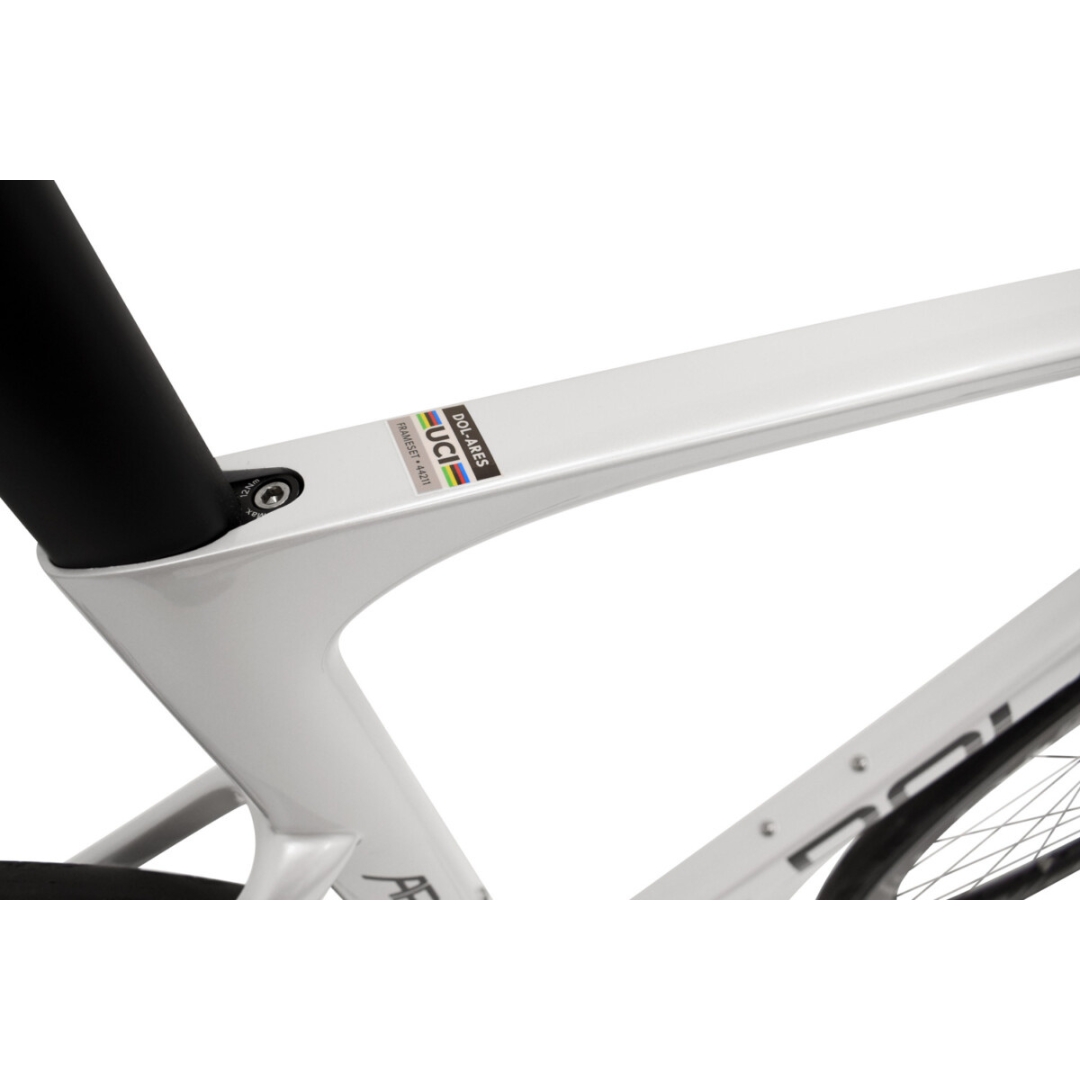

- FRAME : DOLAN ARES DISC CARBON ROAD FRAME.
- FORK : ARES DISC AXLE KIT
- SEAT POST : ARES DISC CARBON
- WHEELS : MAVIC KSYRIUM DISC.

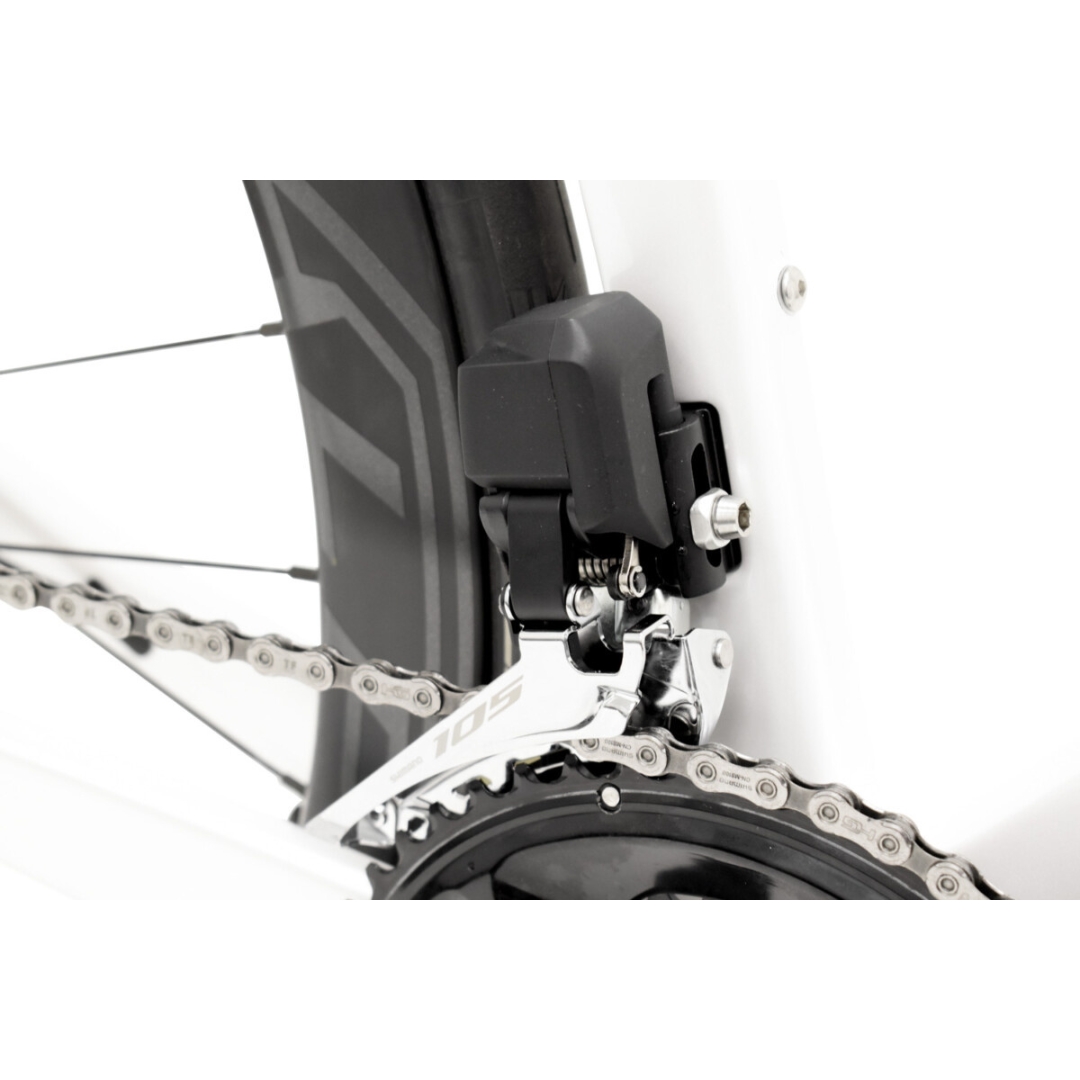

- FRONTDERAILLEUR : SHIMANO 105 R7170 DI2 12 SPEED.
- REAR DERAILLEUR : SHIMANO 105 R7170 DI2 12 SPEED.
- SHIFT /BRAKE CALIPER : SHIMANO 105 R7170 DI2 12 SPEED.
- CASSETTE : SHIMANO 105 R7170 DI2 12 SPEED.
- CRANK SET: SHIMANO 105 R7170 DI2 12 SPEED.
- BRAKE CALIPER : SHIMANO 105 R7170 DI2 12 SPEED.
- COLOUR : BLACK/WHITE.
| Size | XS | S | M | L | XL | |
|---|---|---|---|---|---|---|
| A | Head Angle | 71.5 | 72.5 | 73 | 73.5 | 73.5 |
| B | Head Tube Length (mm) | 105 | 115 | 135 | 155 | 180 |
| C | Effective Top Tube Horizontal (mm) | 510 | 530 | 540 | 562 | 577 |
| D | Seat Angle | 75 | 74 | 74 | 73.5 | 73.5 |
| E | Seat Tube Length Center To Top (mm) | 470 | 500 | 520 | 540 | 560 |
| F | Stack (mm) | 518 | 530 | 552 | 572 | 596 |
| G | Reach (mm) | 372 | 378 | 382 | 393 | 401 |
